Factory tour / production processes

•
  Main entrance to Antuo Industrial's 72,000 sqm production, warehousing and office facilities in Ningbo.
•

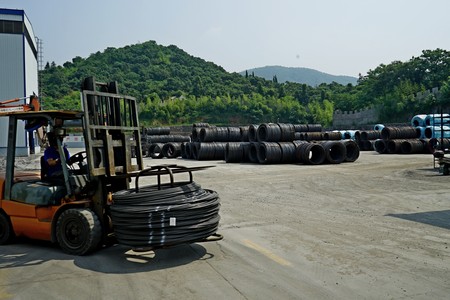

  Raw material steel wire rods are transported in and discharged in the out-door yard for temporary storage.

•

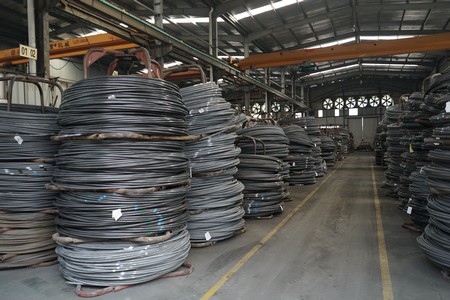

  Steel wire rods are organized and stored in the raw material warehouse ready to be proceed. )
•

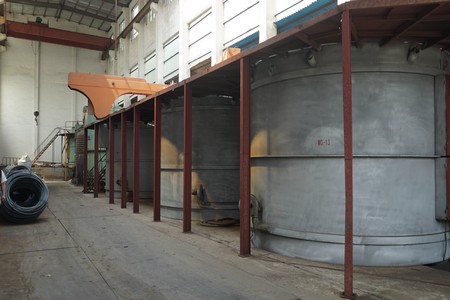

  Steel wire rods heat treated for spheroidize annealing. The process relieve the stress for easy forging and further machining.

•

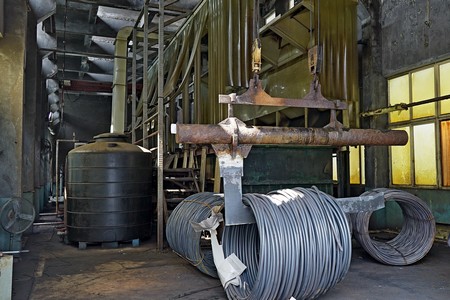

  Acid wash is a surface treatment process to remove rust, oxide skin of steel wire, for the follow-up processes.
•
  After heat treatment and surface treatment, the steel wire rod is pulled to the needed gauge for the forging process>

•

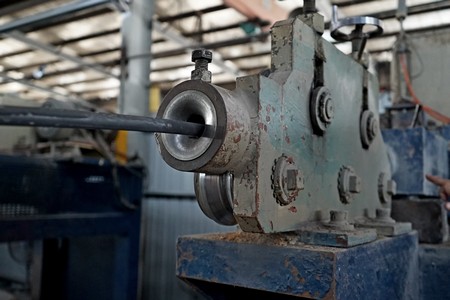

  Steel wire rod is pulled to needed diameter / gauge and rolled back as a coil.
•

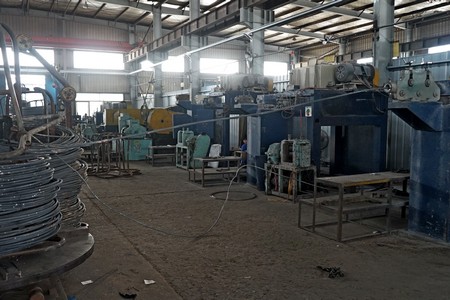

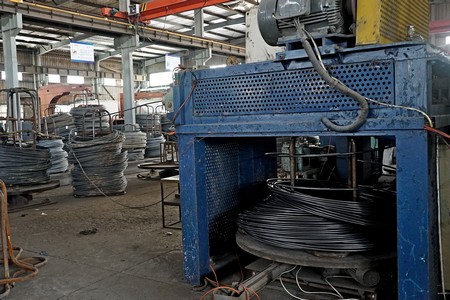

  Machinery lines for pulling steel wire rod to needed diameter. This finishes the pre-treatment of the steel wire rods that will be further transported to the cold forging shop.

•

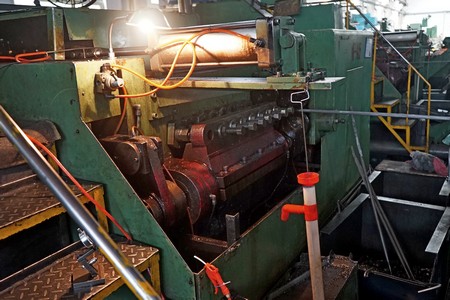

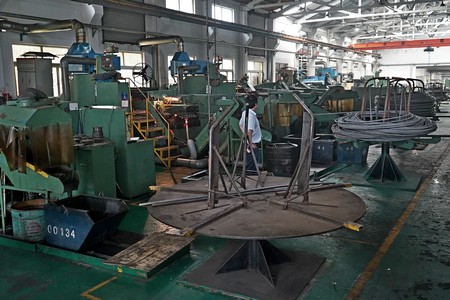

  Cold forging press machine lines for mass forging process
•
  A multi-station cold forging press machine can punch out a forging part every few seconds.

•
  Cold forging press machine close-up: chamber for molds, set of 6.
•
  Cold forging press machine close-up: press in action

•

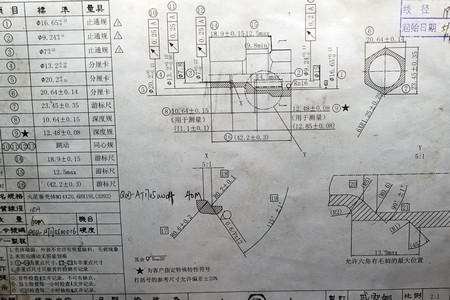

  Engineering drawing of the forging part on the site
•

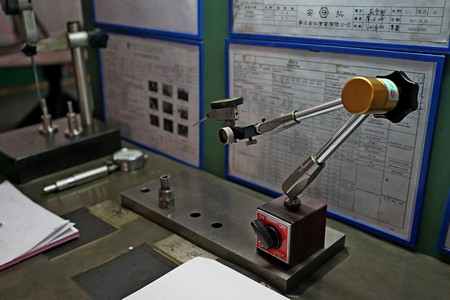

  Part inspection on the site

•

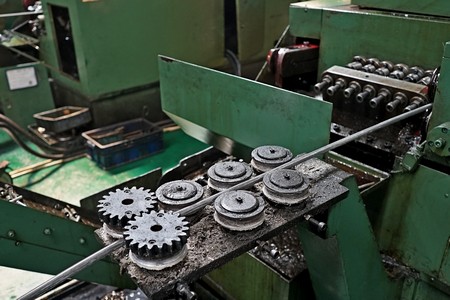

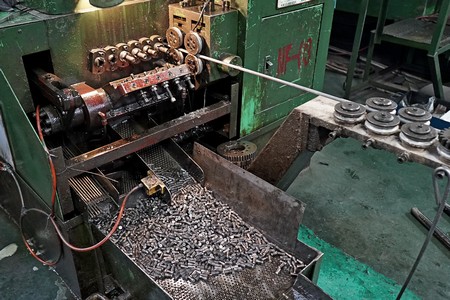

  Steel wire rod is fed into the forging press machine.
•

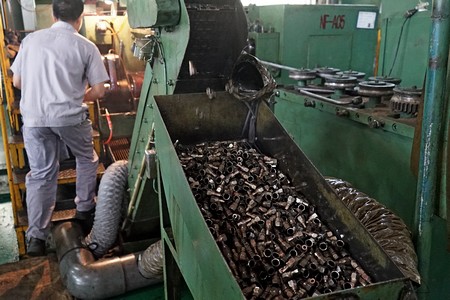

  Finished forging parts dropped to the end bin.

•

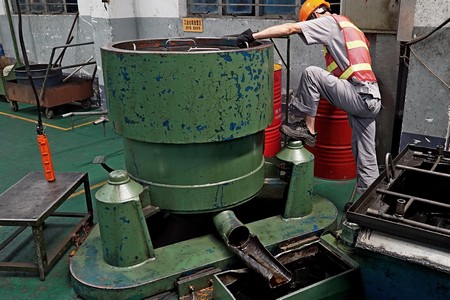

  Forged parts are loaded in a vibration container to shake off the oil from the parts. The oil is used for the purpose of lubrication and heat dissipation during the forging process.
•

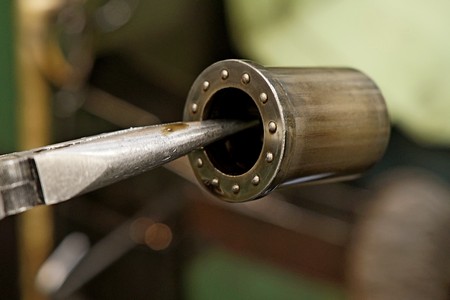

  Close-up of a steel part that was just forged out. It is still very hot to touch. Yujie Tang from SpecsPro held the part with a plier and shoot this photo.

•
  Temporary storage of forging parts
•

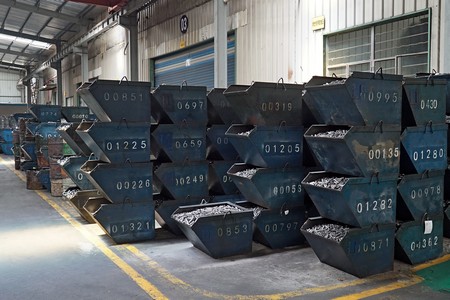

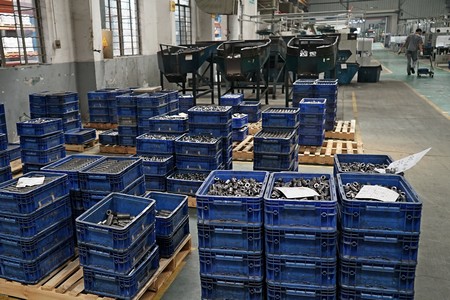

  Forging parts cleaned and stored for further machining process.

At this stage, the forging process is finished. The parts will further go to machining process, usually turning or tapping.

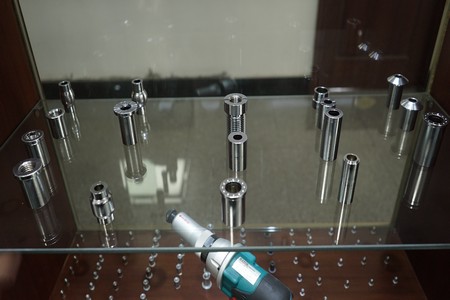

Forging casting parts show room

•

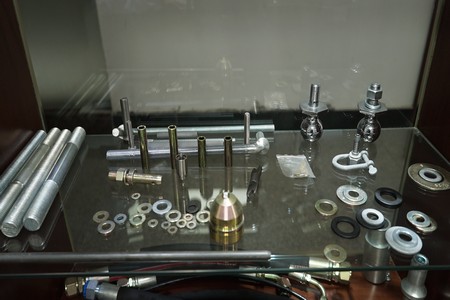

  Forging parts showroom
•
  Forging parts cleaned and stored for further machining process.

•
  Automatic cold forging forming machine
  Forging parts showroom
•
  Small size part forging

•

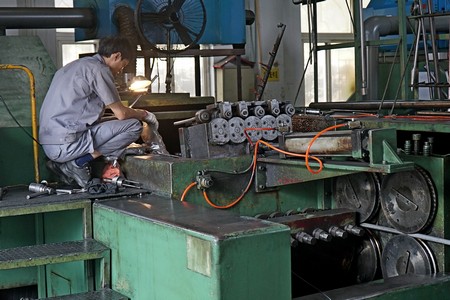

  A technician is performing forging mold installation. The job may take a day or two to install a set of forging molds and perform test-run. Once properly installed and configured, the automatic forging machine can make a few thousands of forging parts in a day.
•

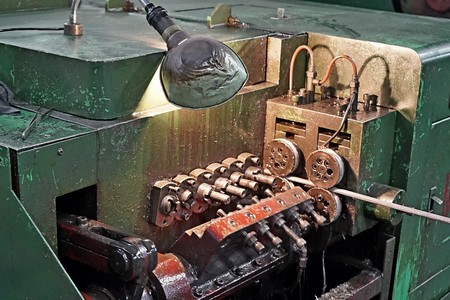

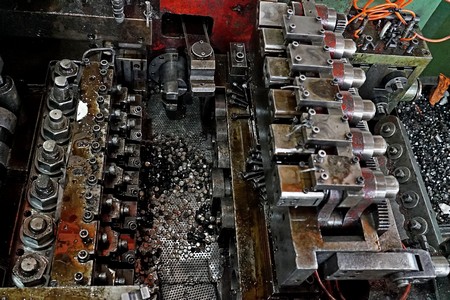

  Forging mold installed for test-run. A set of mold usually consist of 4 to 6 pair of molds. A designed length of steel rod is cut off from the coil and forged 4 to 6 times to gradually form the needed shape. The progress design of each mold pair is critical for the forging part quality.
